High-Efficiency Aluminum Melting Equipment for Foundries and Casting Plants

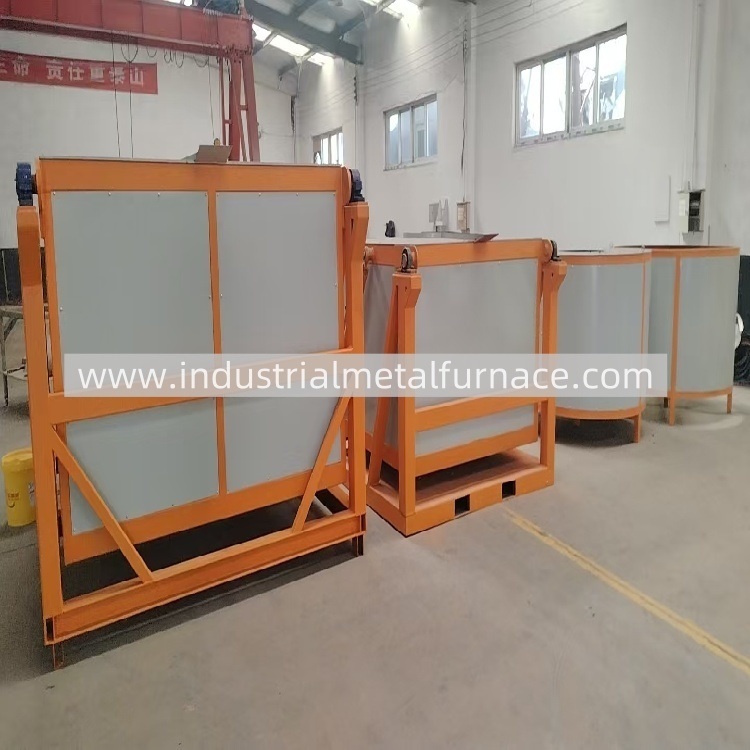

The WDL-DM-1500 Aluminum Induction Melting Furnace is a high-capacity and energy-efficient melting system developed by WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. Designed specifically for medium and large aluminum casting workshops, die-casting lines, and aluminum recycling facilities, this 1500kg aluminum induction melting furnace ensures fast melting speed, stable temperature control, and low energy consumption.
Equipped with a 400KW medium-frequency IGBT power supply, the system offers excellent heating efficiency and long-term operational stability, making it an ideal choice for customers seeking reliable aluminum melting equipment with modern power-saving features.
The WDL-DM-1500 uses an upgraded IGBT induction furnace power system with a wide output range of 40–400KW and a frequency range of 1–10kHz. This technology provides uniform heating, reduced oxidation loss, and shorter melting cycles, especially when processing aluminum ingots, recycled materials, and aluminum alloy scrap.
The power unit includes automatic temperature control, power regulation, and a high power factor (≥0.95), ensuring efficient and stable operation even under continuous production conditions.
| Item | Specification |
|---|---|
| Furnace Model | WDL-DM-1500 |
| Melting Capacity | 1500 kg aluminum |
| Heating Method | Medium-frequency IGBT induction |
| Output Power | 400KW |
| Frequency Range | 1–10 kHz |
| Input Voltage | 3×380V / 50–60Hz |
| Transformer | 500KVA |
| Working Temperature | 950°C |
| Max Temperature | 1200°C |
| Induction Coil Voltage | 500V |
| Start Success Ratio | 98% |
| Energy Consumption | 340–350 KVA per ton aluminum |
| Power Duty Factor | ≥0.95 |
| Tilting System | Hydraulic tilting |
| Crucible | SIC graphite, 1500kg capacity |
The furnace adopts a heavy-duty steel shell, copper-tube induction coil, and a premium SIC graphite crucible, offering excellent thermal conductivity and long service life. The system supports consistent melting at 950°C working temperature and up to 1200°C maximum temperature, meeting the needs of aluminum alloy production, die-casting operations, and metal recycling applications.
The integrated hydraulic tilting system includes pump unit, hydraulic box, valves, and pressure gauge. Operators can easily tilt, stop, and reset the furnace using the control panel or manual handle. This ensures:
Safe metal pouring
Reduced labor intensity
Precise flow control
A reinforced water-cooled connection cable links the power supply to the furnace body, improving electrical safety, maintaining stable power transmission, and extending induction coil lifespan.
Large 1500kg melting capacity
Fast melting with 400KW IGBT power
Low energy consumption and high power efficiency
Durable construction for long-term industrial use
Ideal for foundries, die-casting plants, and aluminum recycling workshops
